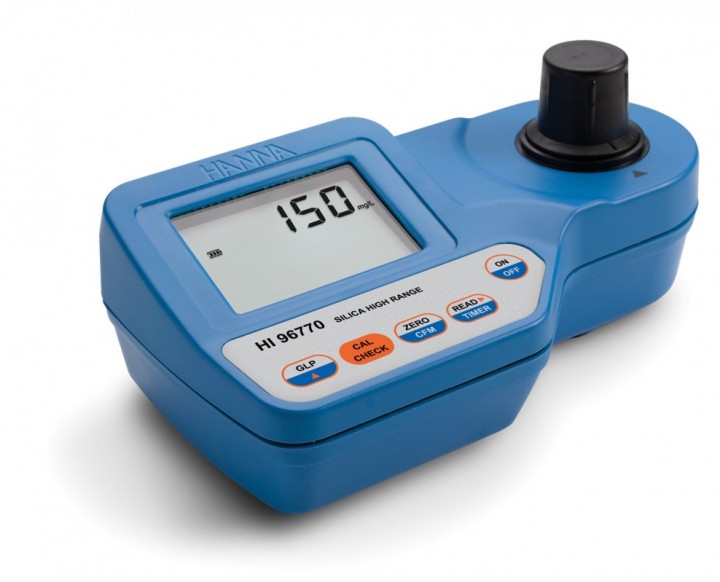

HI96770 SILICA HR 0-200 MG/L – PHOTOMETER MOBILE

Product information “HI96770 Silica HR 0-200 mg/L – Photometer mobile”

Silica is found in all natural waters in the dissolved mineral form. Silica is only slightly soluble in water; solubility and therefore the form of silica in water depends on the pH level of the water and on the minerals containing silica in contact with water.

Silica’s presence in industrial applications is undesirable since it causes scale. In particular, high pressure turbines are highly effected by this factor.

Heating systems and reverse osmosis plants also require monitoring of silica.

HI 96770 measures silica (SiO₂) content from 0 to 200 mg/L.



Order Information: HI 96770 are supplied with sample cuvettes with caps (2 ea.), battery and instructions.

  Manual: DOWNLOAD

Specification :

Range		0 to 200 mg/L (as SiO2)
Resolution		1 mg/L
Accuracy		±1 mg/L ±5% of reading @ 25°C
Light Source		light emitting diode
Light Detection		Silicon Photocell with narrow band interference filter @ 466 nm.
Method		adaptation of the USEPA METHOD 370.1 for drinking, surface and saline waters, domestic and industrial wastes and Standard Method 4500-SiO2 C
Environment		0 to 50°C (32 to 122°F); max 95% RH non-condensing
Power Supply		9V battery
Auto Shut-off		after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder
Dimensions		192 x 104 x 69 mm (7.6 x 4.1 x 2.7″)
Weight		360 g (12.7 oz.)
