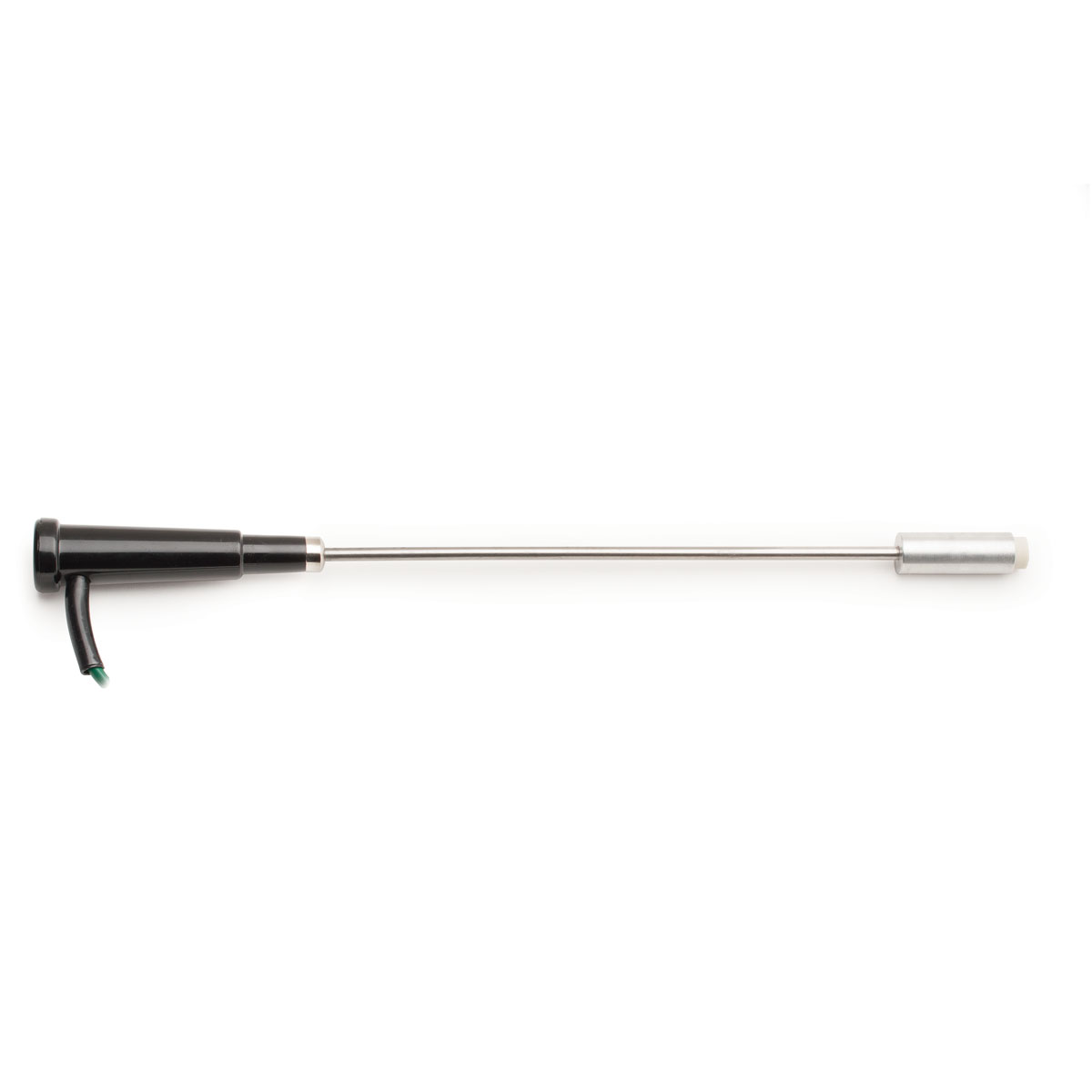

HI766B Surface K-Type Thermocouple Probe with Handle – HI766B

The HI766B is a surface K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A cable extends 1 m (3.3’) from the handle to the thermocouple connector with the meter. The flat, 16 mm diameter surface of the probe allows users to obtain highly accurate temperature readings of furnaces, molds, and other high-temperature solid surfaces.

• Measures up to 650°C (1200°F)
• 8 second response time
• Stainless steel

• Max. Temperature	650°C (1200°F)
  Response time (90% of final value)	8 seconds
  Probe Material	stainless steel
  Probe Dimensions	L 200 mm (7.9″); D 16 mm (0.6″)
  Cable Length	1 m (3.3′)
  Application	furnaces, hot solids, molds
