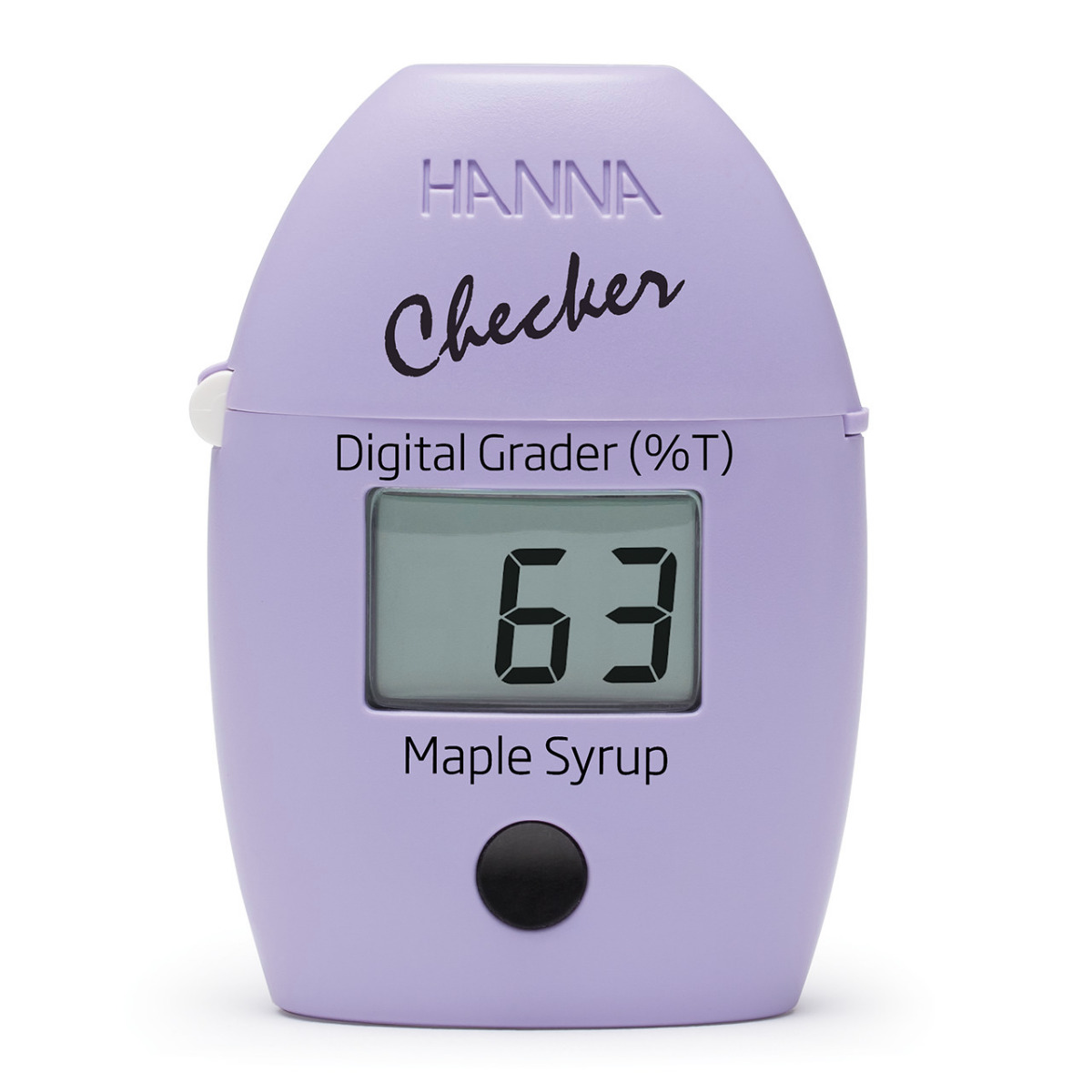

HI759 Maple Syrup Digital Grader

Hanna’s Maple Syrup Digital Grader bridges the gap between visual grading kits and professional instrumentation. Temporary maple syrup grading kits provide minimal accuracy and resolution since they rely upon the human eye to discern differences in color. Professional instrumentation incorporates a light source such as an LED or tungsten lamp with a filter and a light sensing detector to precisely determine the percent light transmittance. Professional instrumentation offers greater resolution and accuracy but can cost hundreds of dollars. The HI759 Maple Syrup Digital Grader uses a fixed wavelength LED and silicon photo detector to provide the accuracy of professional instrumentation at an affordable price.

• Compact, portable design
• Calibrates 100% transmittance with glycerol reference
• Simple, one-button operation

• Color, Maple Syrup Range	0 to 100% transmittance
  Color, Maple Syrup Resolution	1% transmittance
  Color, Maple Syrup Accuracy	±4% transmittance
  Color, Maple Syrup Method	adaptation of the USDA maple syrup standard.
  Photometer/Colorimeter Light Source	LED @ 560 nm
  Photometer/Colorimeter Light Detector	silicon photocell
  Battery Type/Life	(1) 1.5V AAA
  Automatic Shut-Off	after ten minutes of non-use
  Environment	0 to 50°C (32 to 122°F); RH max 95% non-condensing
  Weight	64 g (2.25 oz.)
  Dimensions	86.0 mm x 61.0 mm x 37.5 mm (3.4″ x 2.4″ x 1.5″)
  Ordering Information	HI759 Checker® is supplied with (3) sample cuvettes with caps, sealed glycerol reference cuvette, (3) plastic beakers, battery, instructions, and quick start guide.
