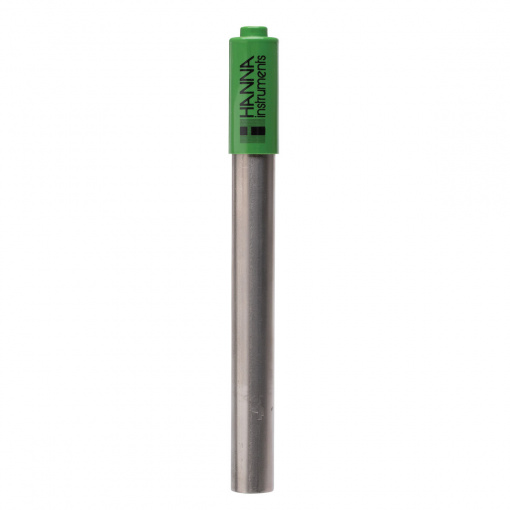

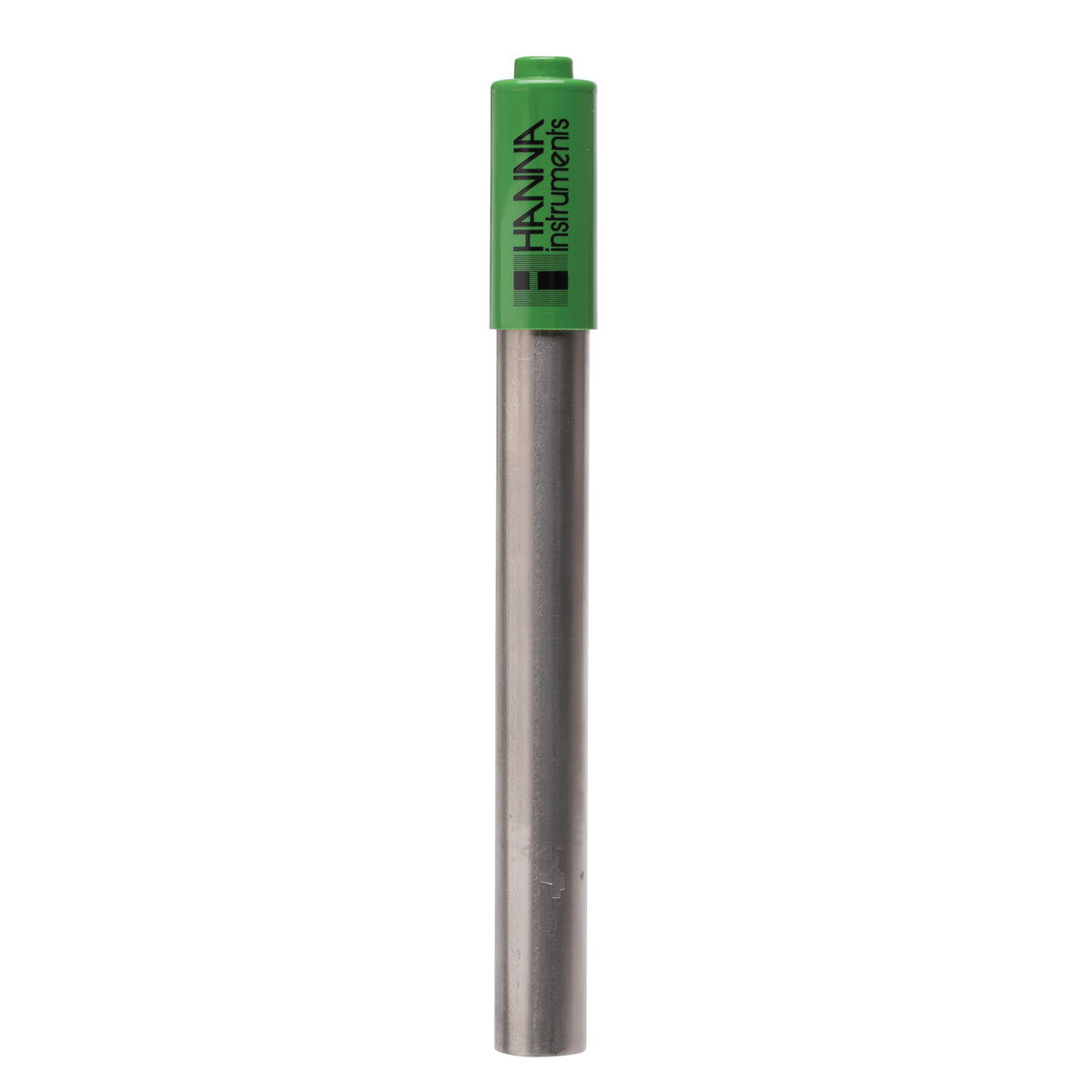

The HI729113 is a titanium body, polymer filled, double reference junction pH electrode with a qucik connect DIN connector. This flat tip sensing portion of this electrode is made with general purpose glass.
The HI729113 also has a PTFE type junction along with a built-in temperature sensor and amplifier within a single probe design. This design consideration is ideal for measuring the pH in boilers and cooling towers. The HI729113 is designed for use with Hanna’s HI99141 pH meter.
- Titanium Body
- Built-In Temperature Sensor
- Recessed, Flat Tip
Reference Cell Type | double, Ag/AgCl |
---|---|
Junction Type/Flow Rate | PTFE |
Type of Electrolyte | polymer |
Body Material | titanium body working as matching pin |
Glass Type | GP – general purpose |
Tip / Shape | flat |
Matching Pin | yes |
Max. Pressure | 3.0 bar |
Optimum pH Range | pH: 0 to 13 |
Temperature Operating Range | 0 to 80°C (32 to 176°F) |
Body Length/Overall Length | 110 mm / 150.5 mm |
Temperature Sensor | yes |
Outer Diameter | 14 mm |
Cable | 7-pole; 1 m (3.3′) |
Connector Type | quick connect DIN connector |
Amplifier | yes |
Recommended Use | boilers, cooling towers |
