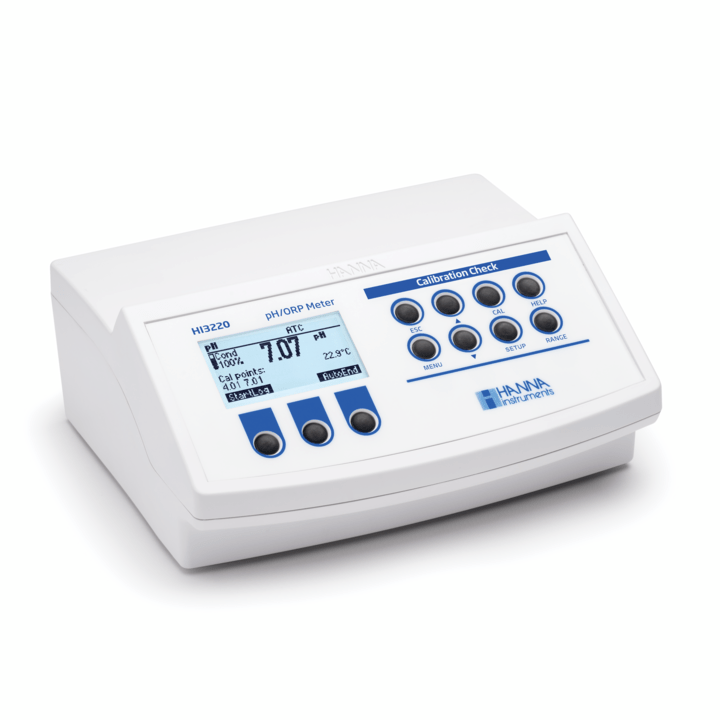

HI3220 is a professional pH/ORP/Temperature bench meter with a graphic LCD designed to provide high accuracy and ease of use both in laboratory settings as well as in harsh industrial conditions. A Relative mV feature is also available.
This meter features Hanna’s exclusive Calibration Check diagnostics system that eliminates erroneous readings due to dirty (faulty) pH electrodes or contaminated buffer solution by alerting users of potential problems during the calibration process.
Throughout the calibration process, users are guided step-by-step by the on-screen tutorial. After calibration, a probe condition indicator informs users of the overall electrode status.
A variety of interactive user support is available before, during and after measurement. Onscreen tutorials guide users through set-up, calibration and measurement while context sensitive help of any screen is available at a push of a button. The HELP screen accessed by a dedicated HELP button, includes language specific assistance for menu parameters, calibration, log, contact information and accessories.
Specifications
SKU | HI3220 |
Product Name | pH/ORP/Temperature Bench Meter with Calibration Check |
pH Range | -2.0 to 20.0 pH / -2.00 to 20.00 pH / -2.000 to 20.000 pH |
pH Resolution | 0.1 pH / 0.01 pH / 0.001 pH |
pH Accuracy | ±0.01 pH / ±0.002 pH |
pH Calibration | Up to 5 points / 7 standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) / 5 custom buffers |
ORP Range | ±2000.0 mV |
ORP Resolution | 0.1 mV |
ORP Accuracy | ±0.2 mV |
Temperature Range | -20.0 to 120.0 °C (-4.0 to 248.0 °F) |
Temperature Resolution | 0.1 °C (0.1 °F) |
Temperature Accuracy | ±0.2 °C (±0.4 °F) (excluding probe error) |
Rel mV offset range | ±2000 mV |
Slope calibration | From 80 to 110% |
Temperature compensation | Manual / Automatic |
Electrode | Hanna BNC connection pH / ORP electrodes |
Temperature probe | RCA Connection / Recommended option |
LOG on demand | 200 samples |
Lot logging | 5, 10, 30 seconds / 1, 2, 5, 10, 15, 30, 60, 120, 180 minutes / AutoEnd (maximum 600 samples) |
Environment | 0 to 50 °C (32 to 122 °F) / max. RH 55% non-condensing |
Power Supply | 12 Vdc power adapter |
PC interface | opto-isolated USB |
Dimensions | 235 x 207 x 110 mm (9.2 x 8.14 x 4.33 in.) |
Weight(meter only) | 1.8 Kg (4.1 lbs) |
