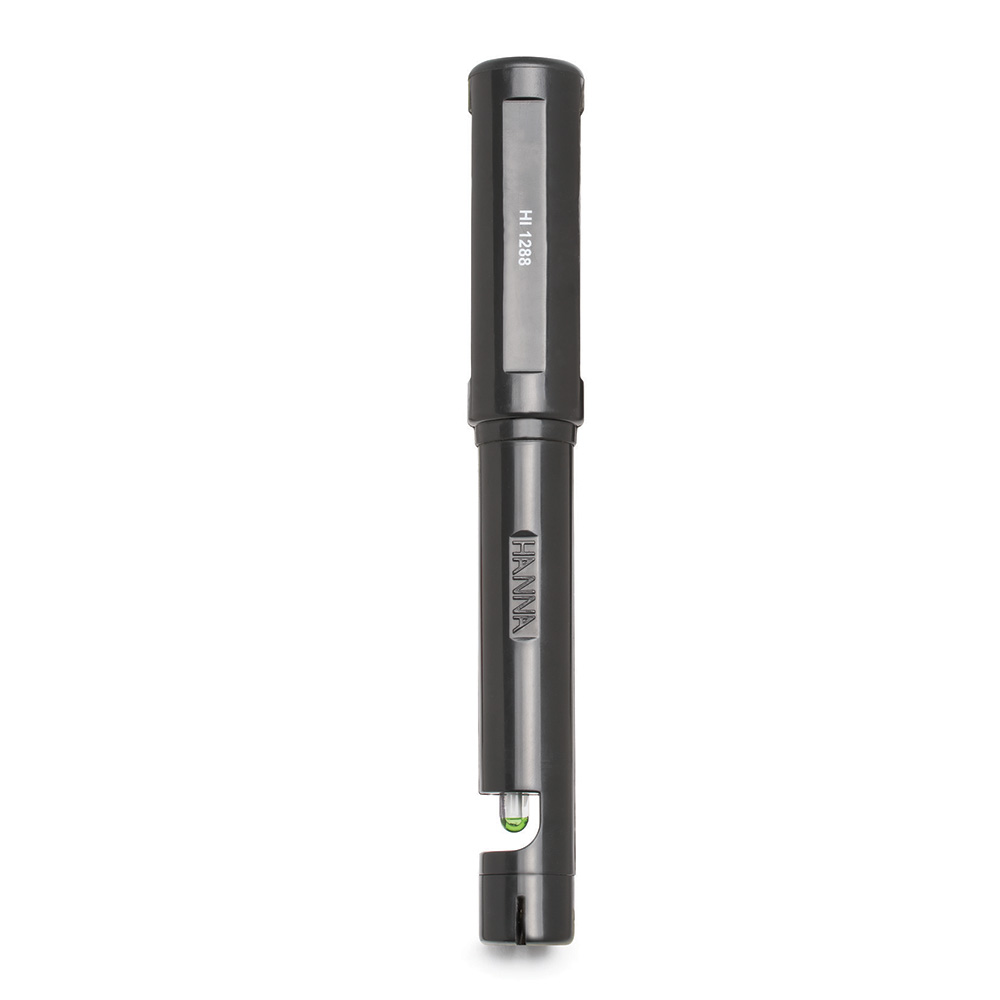

HI12883 – pH/EC/TDS Multiparameter Probe with Quick Connect DIN Connector

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized, เครื่องวัดคุณภาพน้ำ

รายละเอียดเพิ่มเติม

The HI12883 is a 3-in-1 pre-amplified multiparameter probe that measures pH, EC/TDS, and temperature within a single polypropylene body. The pH portion of this probe is constructed with a cloth junction, maintenance free polymer gel electrolyte, and a low temperature glass sensing bulb. The EC/TDS portion of this probe utilizes two graphite sensors for an amperometric determination of conductivity and total dissolved solids. A built-in temperature sensor ensures that both pH and EC/TDS readings are compensated for temperature variations in both standards and samples. The design consideration for the HI12883 is ideal for measuring the pH, EC/TDS, and temperature in greenhouses, hydroponics, environmental monitoring, water treatment, wastewater treatemnt and boilers and cooling towers. The HI12883 is designed for use with Hanna’s HI991300 and HI991301 portable multiparameter meters.

Pre-amplified pH electrode
Amperometric EC/TDS sensor
Built-in temperature sensor

Reference Cell Type	HI12883
Junction Type/Flow Rate	cloth
Type of Electrolyte	gel
Body Material	polypropylene
Glass Type	low temperature (LT)
Tip / Shape	spheric (8 mm)
Matching Pin	no
Max. Pressure	0.1 bar
Optimum pH Range	0 to 13
Temperature Operating Range	0 to 50°C (32 to 122°F)
Body Length/Overall Length	95 mm / 185 mm
Temperature Sensor	yes
Outer Diameter	16 mm
Cable	7-pole; 1 m (3.3′)
Connector Type	quick connect DIN connector
Amplifier	yes
Recommended Use	General purpose, water treatment, agriculture, boilers, cooling towers
Notes	To be used with HI991300 and HI991301
