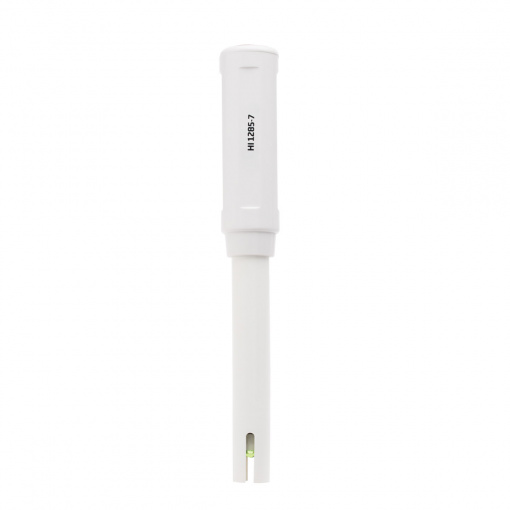

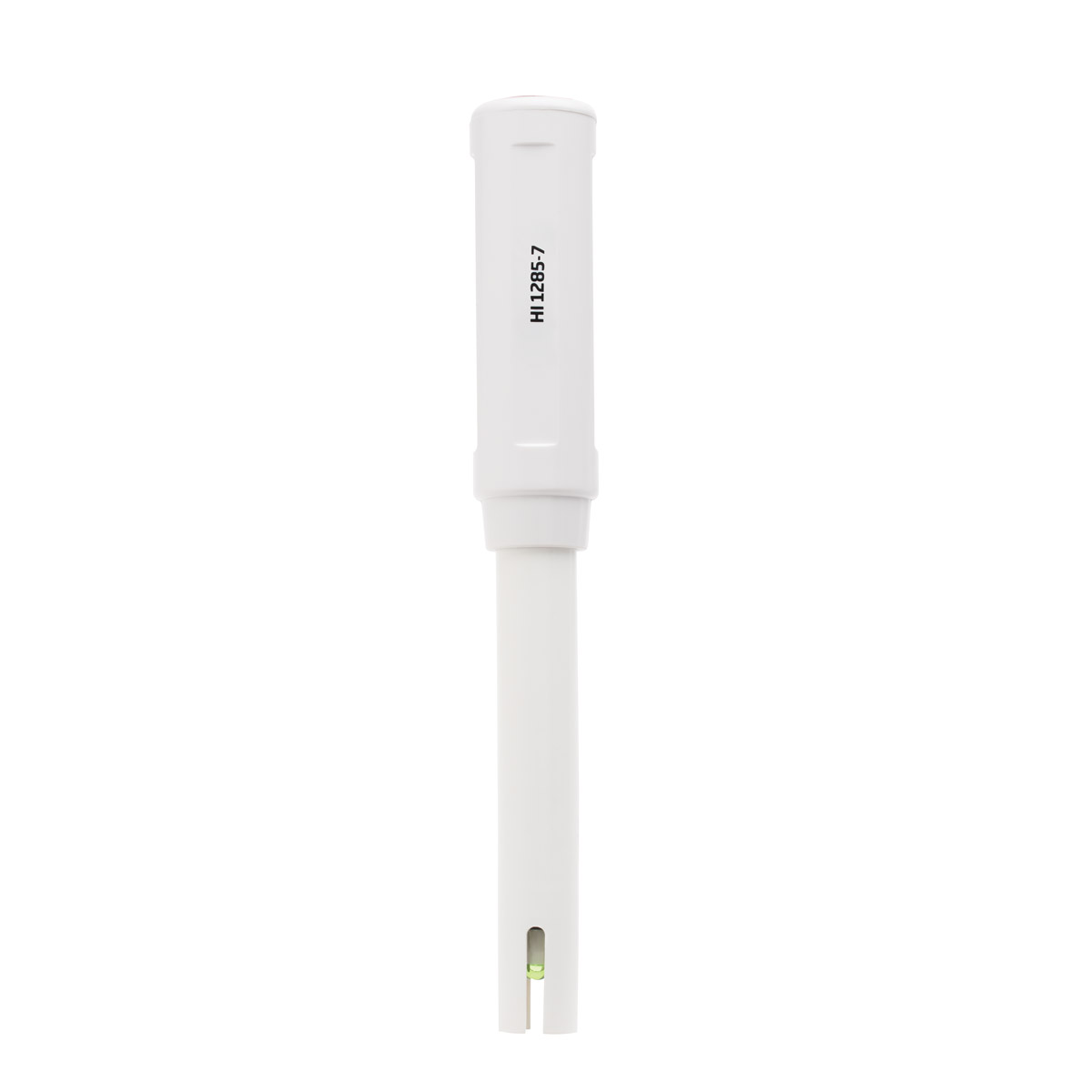

The HI1285-7 is a 3-in-1 pre-amplified multiparameter probe that measures pH, EC/TDS, and temperature within a single polypropylene body. The pH portion of this probe is constructed with a cloth junction, maintenance-free polymer gel electrolyte, and a low-temperature glass sensing bulb. The EC/TDS portion of this probe utilizes two stainless steel pins for an amperometric determination of conductivity and total dissolved solids. A built-in temperature sensor ensures that both pH and EC/TDS readings are compensated for temperature variations in both standards and samples. The design consideration for the HI1285-7 is ideal for measuring the pH, EC/TDS, and temperature in greenhouses, hydroponics, and other agricultural applications. The HI1285-7 is designed for use with Hanna’s HI9814 portable multiparameter meter.
- Pre-amplified pH Electrode
- Amperometric EC/TDS Sensor
- CAL Check Compatible
Reference Cell Type | single, Ag/AgCl |
---|---|
Junction Type/Flow Rate | cloth |
Type of Electrolyte | gel |
Body Material | polypropylene |
Glass Type | low temperature (LT) |
Tip / Shape | spheric (8 mm) |
Matching Pin | no |
Max. Pressure | 0.1 bar |
Optimum pH Range | 0 to 13 |
Temperature Operating Range | 0 to 50°C (32 to 122°F) |
Body Length/Overall Length | 95 mm / 185 mm |
Temperature Sensor | yes |
Outer Diameter | 16 mm |
Cable | 7-pole; 1 m (3.3′) |
Connector Type | quick connect DIN connector |
Amplifier | yes |
Recommended Use | Greenhouses, hydroponics, environmental monitoring, water treatment, boilers, cooling towers |
Notes | To be used with HI9814 |
