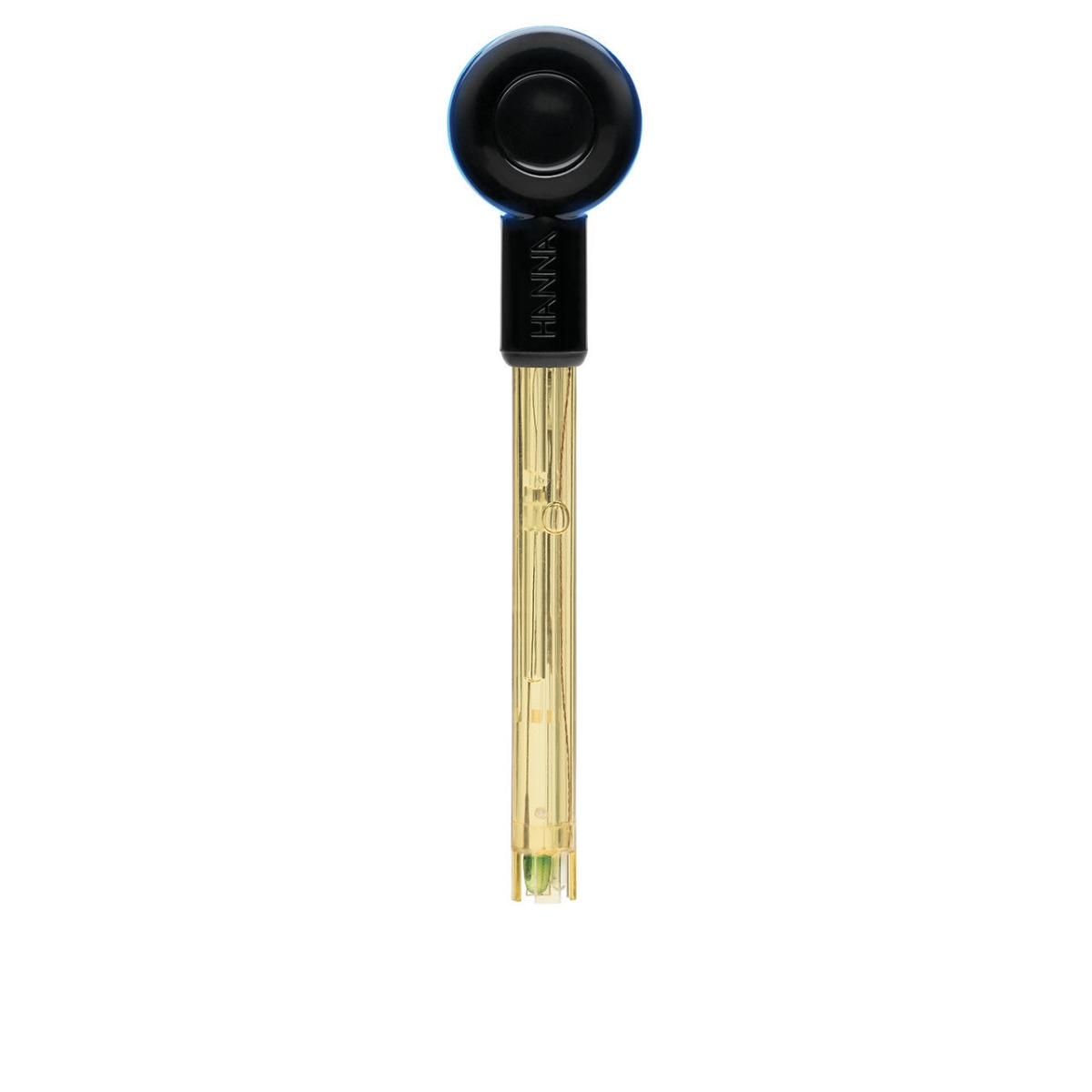

HI12302 – HALO® PEI Body Gel Filled pH Electrode with Bluetooth®

The HI12302 HALO is a Bluetooth Smart (Bluetooth 4.0) pH and temperature electrode with a durable PEI body and spheric, low temperature glass sensing bulb.

The double junction design ensures that the gel electrolyte is free of silver chloride (AgCl) between the sample to be measured and the internal reference cell, resisting clogging and any potential precipitation at the junction.

All readings are transmitted directly to the HI2202 edge^blu or a compatible Apple or Android device running the Hanna Lab App.

One Press Connect

Easily connect to the Hanna Lab App at the press of a button via Bluetooth wireless technology.

Status Indicator

Visible from a distance, the LED “halo” light flashes to indicate the status of the probe.

Easy-to-Replace Battery

The HALOs CR2032 lithium ion battery is easily replaceable and lasts for approximately 500 hours.

Measurement Range	pH: 0 to 12
Reference Cell Type	double, Ag/AgCl
Junction Type/Flow Rate	ceramic, single
Type of Electrolyte	gel
Body Material	PEI
Tip / Shape	spheric
Matching Pin	no
Max. Pressure	2 bar
Temperature Operating Range	-5 to 70°C (23 to 158°F) – LT
Body Length/Overall Length	100 mm / 165 mm
Temperature Sensor	yes
Outer Diameter	12 mm
Connector Type	Bluetooth Smart (Bluetooth 4.0), 10 m (33′) range
Battery Type/Life	CR2032 3V lithium ion / approximately 500 hours
Amplifier	yes
Recommended Use	field applications
Notes	Environment: 0.0 to 50.0°C (32.0 to 122.0°F), electronic module is not waterproof
Range	-2.000 to 16.000 pH / ±800 mV / -20.0 to 120.0 ºC *(will be reduced to actual probe/sensor limits)
Resolution	0.1, 0.01, 0.001 pH / 1, 0.1 mV
Accuracy (@25ºC/77ºF)	±0.005 pH / ±0.3 mV
Calibration Points	Up to five points with seven standard buffers
Calibration Buffers	1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH
Temperature Compensation	Automatic from -5.0 to 100.0 ºC / 23.0 to 212.0 ºF *(will be reduced to actual probe/sensor limits)
Compatibility/System Requirements	Android: Compatible with most devices equipped with Bluetooth Smart Technology (Bluetooth 4.0) and running Android 4.3 or later. iOS: Compatible with iPad (3rd generation or newer), iPhone (4S or newer), iPod Touch (5th generation or newer)
Download Information	Hanna Lab App is available free from the Play Store or App Store
Ordering Information	HI12302 (HALO) is supplied with storage solution, cleaning solution, pH 7.01 buffer solution, pH 4.01 buffer solution, battery, quality certificate and instruction sheet.
