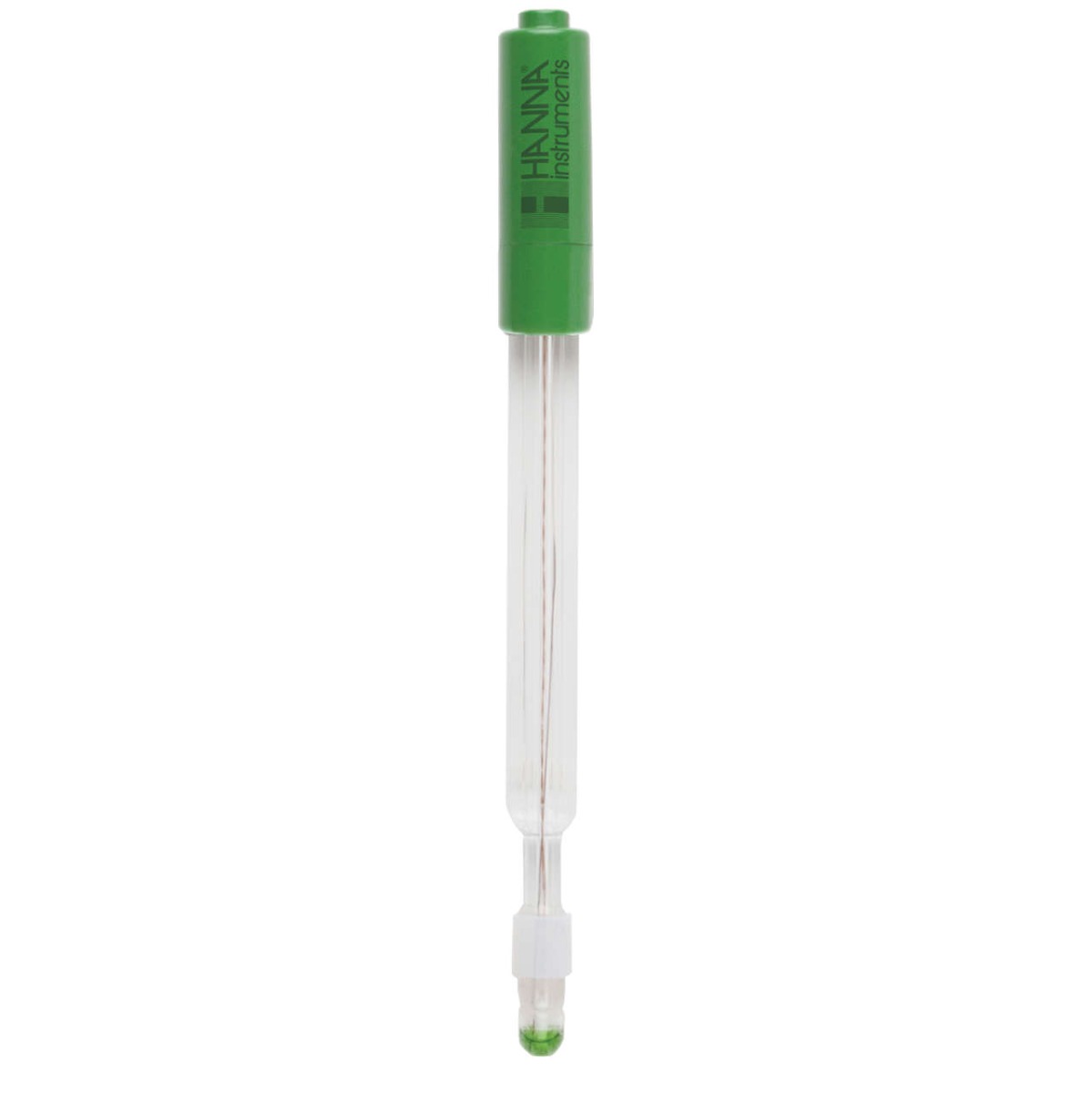

HI1048D – pH Electrode with Clogging Prevention System (CPS™) and DIN Connector

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized, เครื่องวัดคุณภาพน้ำ

รายละเอียดเพิ่มเติม

The HI1048D is a glass body, refillable, open junction pH electrode with a DIN connector that is supplied with the HI99111. This electrode features a double junction reference, Hanna’s Clogging Prevention System (CPS™) technology and spherical glass sensing bulb made with general purpose glass.

This pH electrode is ideal for wine must and juice due to their high solids content that would clog a standard general purpose pH electrode. The HI1048D is a pre-amplified electrode that has a built-in temperature sensor for temperature compensated measurements in a single probe design.

Clogging Prevention System (CPS™) Technology
Built-In Temperature Sensor
Double Junction Design

Measurement Range	pH: 0 to 12
Reference Cell Type	double, Ag/AgCl
Junction Type/Flow Rate	open, CPS technology
Refill Electrolyte	3.5M KCl
Body Material	glass
Tip / Shape	dome (dia: 8 mm)
Matching Pin	no
Max. Pressure	0.1 bar
Temperature Operating Range	0 to 80°C (32 to 176°F) – GP
Body Length/Overall Length	120 mm / 175.5 mm
Temperature Sensor	yes
Outer Diameter	12 mm
Cable	7-pole; 1 m (3.3′)
Connector Type	DIN
Amplifier	yes
Recommended Use	juice, must, wine
