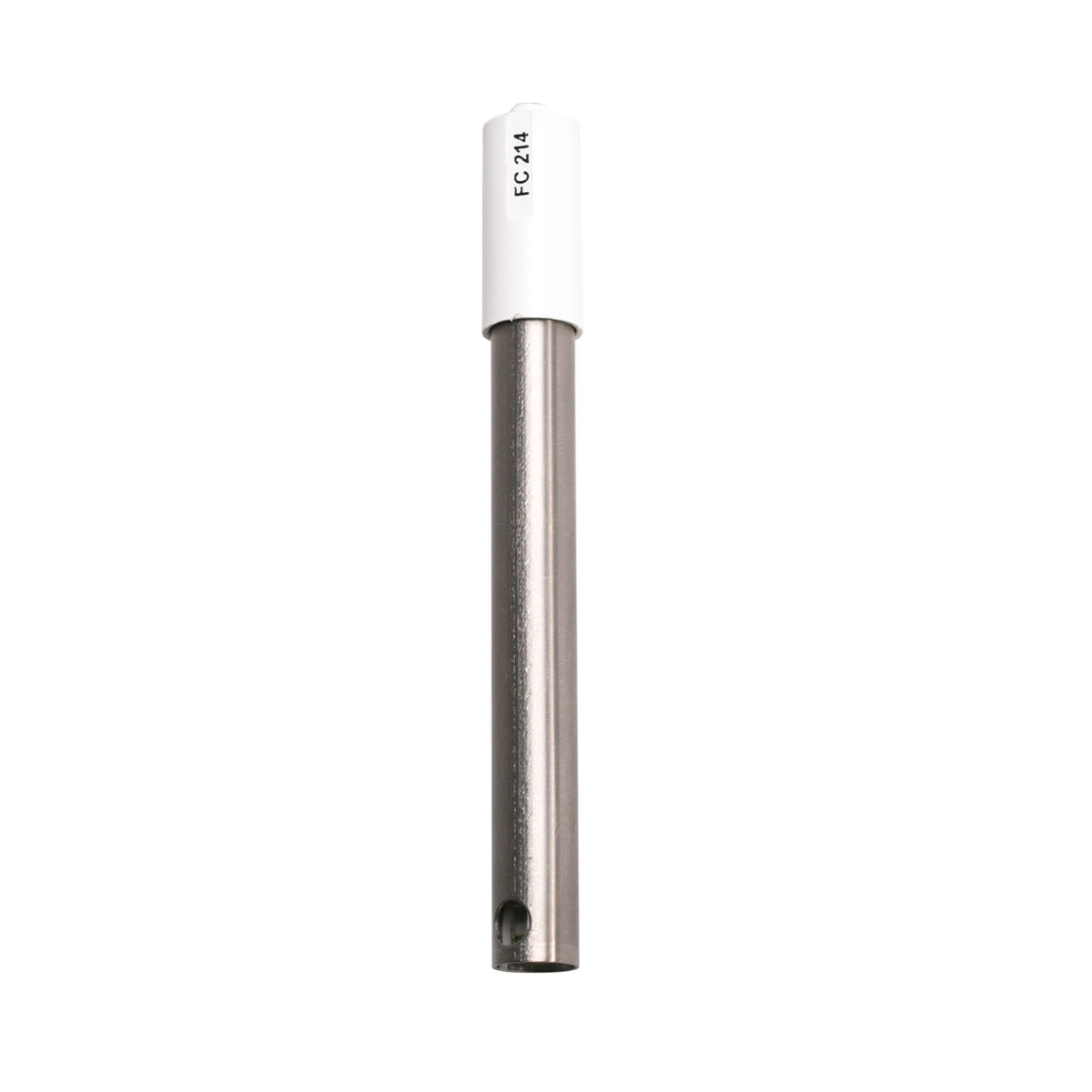

The FC214D is a titanium body, gel filled, single reference junction pH electrode. This electrode features high temperature glass and an extendable cloth type junction, along with a built-in temperature sensor and amplifier in a single probe design.
This design consideration is ideal for measuring the pH of mash or wort during the beer making process. The FC214D is the replacement pH/temperature probe supplied with the HI99151 portable meter for beer.
- High Temperature Glass
- Titanium Body
- Built-In Temperature Sensor
Measurement Range | pH: 0 to 13 |
---|---|
Reference Cell Type | single, Ag/AgCl |
Junction Type/Flow Rate | cloth |
Type of Electrolyte | gel |
Body Material | titanium with HT glass sensor |
Tip / Shape | spheric (dia: 5 mm) |
Temperature Operating Range | 0 to 80°C (32 to 176°F) – HT |
Body Length/Overall Length | 105 mm / 145.5 mm |
Temperature Sensor | yes |
Outer Diameter | 14 mm |
Cable | 7-pole; 1 m (3.3′) |
Connector Type | DIN |
Amplifier | yes |
Recommended Use | beer, mash, wort |
