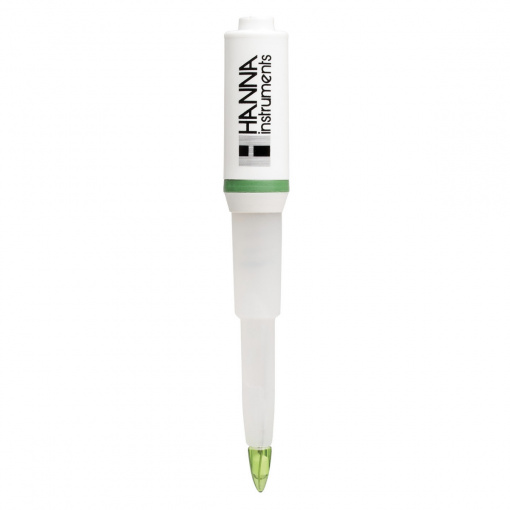

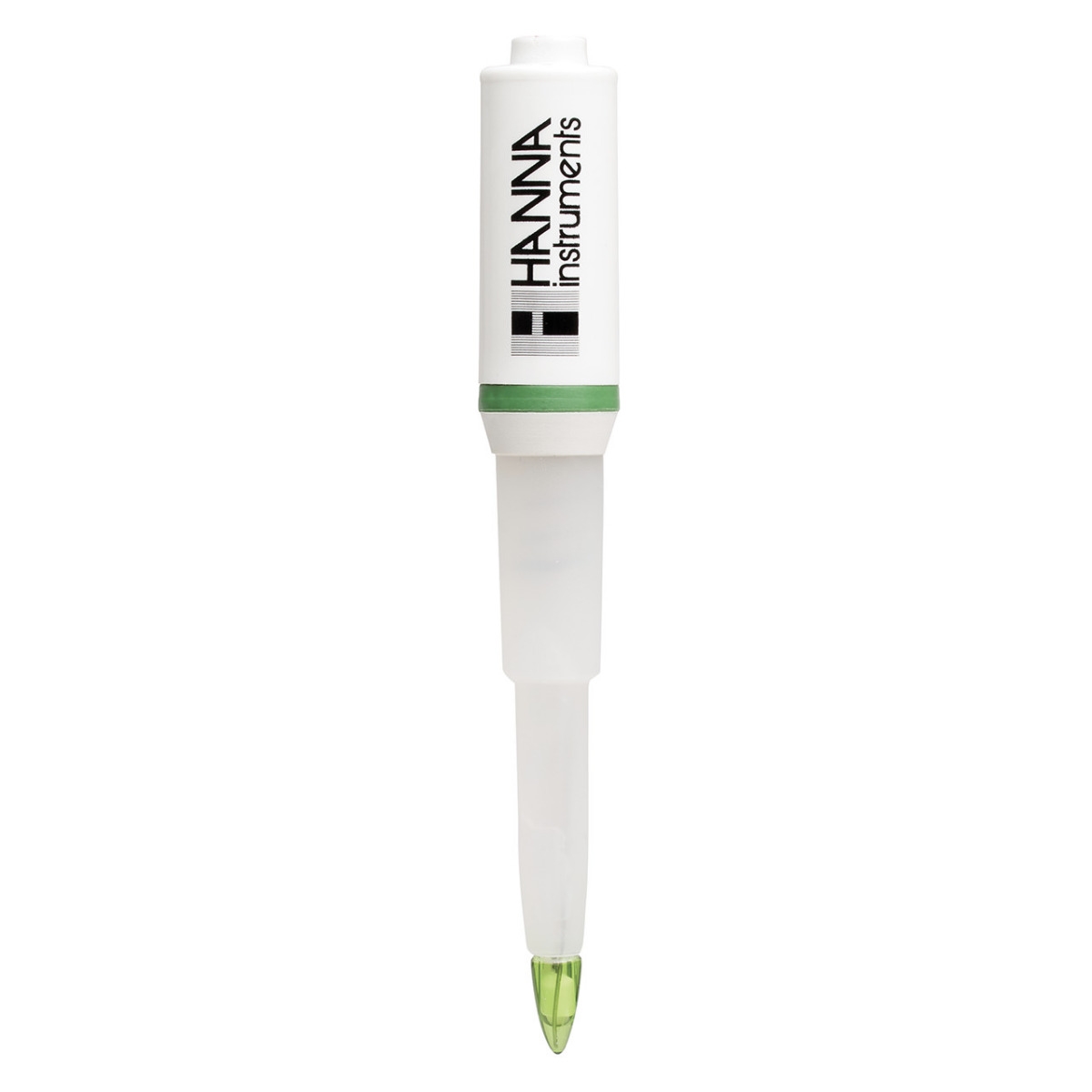

FC2023 – Foodcare pH Electrode for Semi-Solid with Quick Connect DIN Connector

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized, เครื่องวัดคุณภาพน้ำ

รายละเอียดเพิ่มเติม

The FC2023 is an amplified double junction pH electrode that has a built-in temperature sensor and connects to the meter with a quick connect DIN connector. This type of connector is proprietary to specific meters such as the HI98190.

The FC2023 electrode features a food grade plastic PVDF body, an open junction design with viscolene gel electrolyte, a sensing bulb made of low temperature glass, and a conical tip shape. This design consideration is ideal for pH measurements in dairy products, emulsions, cream, or other semi-solid samples. The recommended operating temperature range is from 0 to 50°C.

Low Temperature Glass
PVDF Body
Open Junction

Reference Cell Type	single, Ag/AgCl
Junction Type/Flow Rate	open
Type of Electrolyte	viscolene
Body Material	PVDF
Glass Type	low temperature (LT)
Tip / Shape	conic (6 x 10 mm)
Matching Pin	no
Max. Pressure	0.1 bar
Optimum pH Range	pH: 0 to 12
Temperature Operating Range	0 to 50°C (32 to 122°F)
Body Length/Overall Length	75 mm / 130 mm
Temperature Sensor	yes
Outer Diameter	6 mm
Cable	5-pole; 1 m (3.3′)
Connector Type	quick connect DIN connector
Amplifier	yes
Recommended Use	dairy, emulsions, milk, semi-solid foods, yogurt
