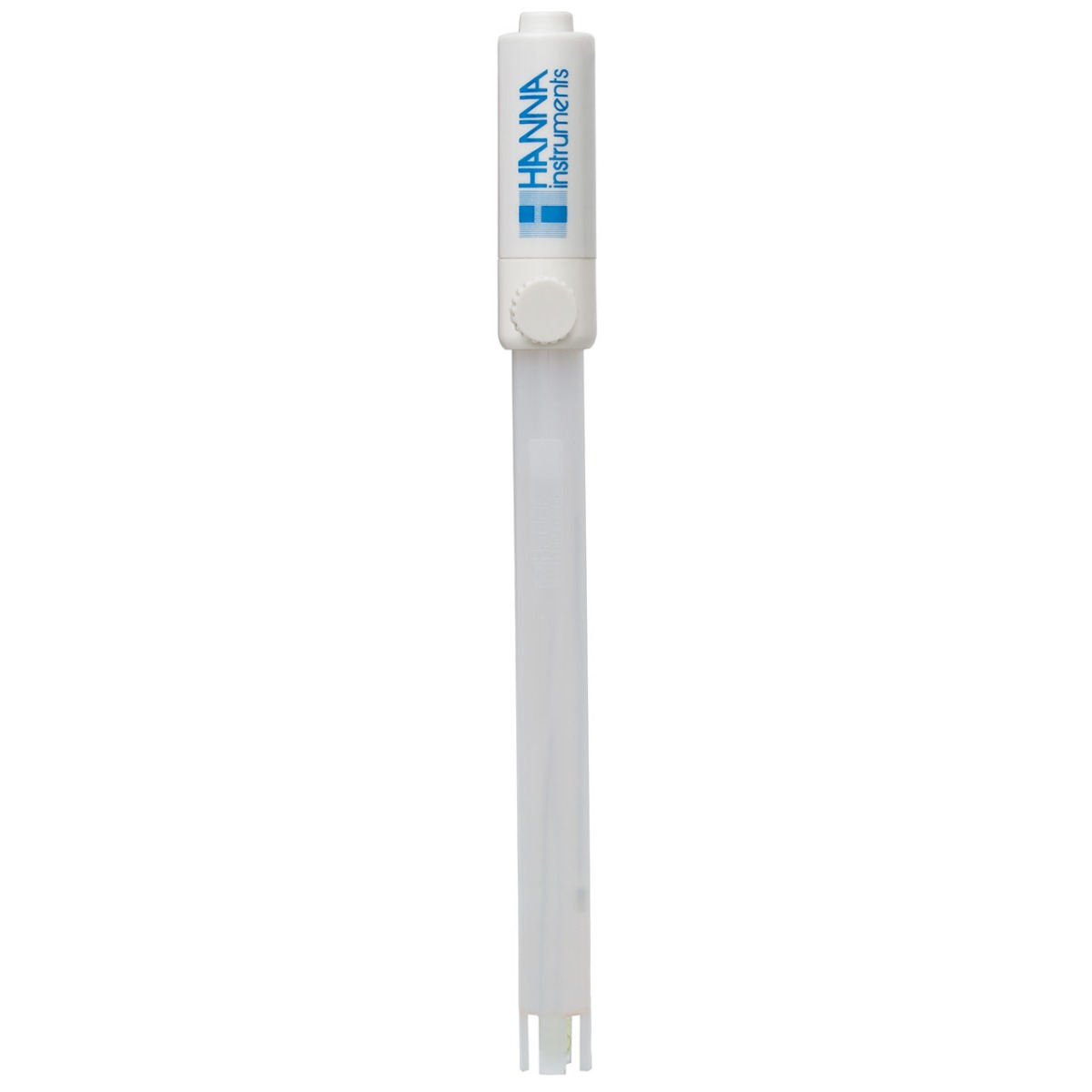

FC1013 – PVDF Body Foodcare pH Electrode with Quick Connect DIN Connector for Dairy Products

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized, เครื่องวัดคุณภาพน้ำ

รายละเอียดเพิ่มเติม

The FC1013 is a PVDF body, refillable, double junction pH electrode with a quick connect connector. This single ceramic, double junction electrode has a pH indicating probe made of general purpose glass and a food grade plastic body.

This design consideration is ideal for pH measurements in the food industry including sauces, juices, dairy products and other liquid or slurry forms of food. The recommended operating temperature range is from 0 to 80°C.

Durable PVDF Body
Double Junction Design
Refillable Electrode

Reference Cell Type	double, Ag/AgCl
Junction Type/Flow Rate	ceramic, single / 15-20 μL/h
Refill Electrolyte	3.5M KCl
Body Material	PVDF
Glass Type	general purpose (GP)
Tip / Shape	spheric (dia: 7.5 mm)
Matching Pin	no
Max. Pressure	0.1 bar
Optimum pH Range	pH: 0 to 13
Temperature Operating Range	0 to 80°C (32 to 176°F)
Body Length/Overall Length	120 mm / 160 mm
Temperature Sensor	yes
Outer Diameter	12 mm
Cable	coaxial; 1 m (3.3’)
Connector Type	quick connect DIN connector
Amplifier	yes
Recommended Use	dairy, juice, liquids and slurries measurement in food industry, sauces
