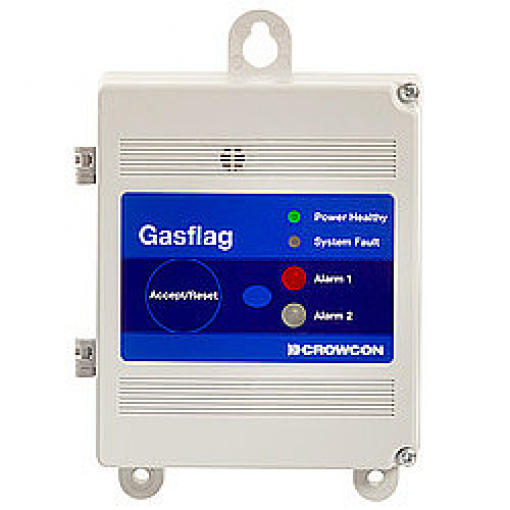

Gasflag 1-Channel Gas Leak Detector

Gasflag 1-Channel Gas Leak Detector
Quick-response gas monitoring device ideal for workplace safety applications

The Gasflag 1-Channel Gas Leak Detector is a stationary, permanently fixed or wall-mounted occupational health and safety (OHS) gas monitoring device equipped with a 4 to 20-mA input for the connection of one gas sensor (sensor not included). The Gasflag responds to a gas flare in less than a second, issuing a dual audible and visual alarm to alert nearby personnel.

– Quick response
– Easy to install and operate
– IP20 ingress protection rating
– Input: 4… 20-mA, single channel
– Operating voltage: 13… 28V DC
– Audible sound and visual LED alarm indicators
– Gas sensor sold separately – see accessories for details
– Outputs: Single-pole change-over for use with DC signals, relay contacts 1 A at 30V DC





Operating temperature -20… 70 ° C / -4… 158 ° F Operating humidity 0… 99 % RH (relative humidity) Operating voltage 13… 28V DC Response time < 1 second Housing material ABS plastic Dimensions Approx. 210 x 145 x 46 mm / 8.3 x 5.7 x 1.8″ Weight Approx. 500 g / 1.2 lbs Ingress protection IP20 rating Sensor input 4… 20-mA Outputs Single-pole change-over for use with DC signals Relay contacts 1 A at 30V DC Display LED Channel(s) Single
