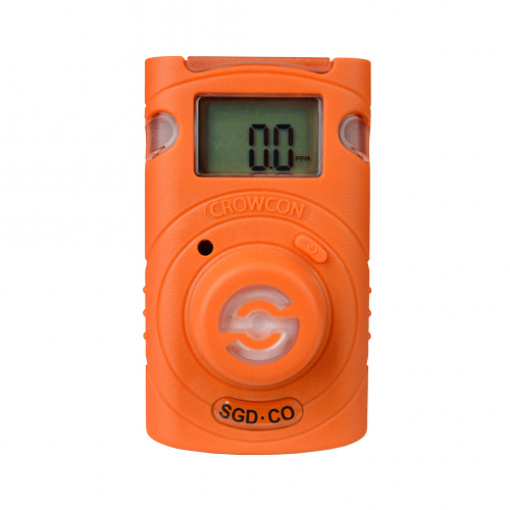

Gas Leak Detector Crowcon Clip and Clip+ with 24- or 36-month lifetime / triple alarm-signaling / no service or calibration necessary / self-testing function / CO, H2S or O2
This Gas Leak Detector is a compact and reliable meter, which is built to guarantee the safety of factory workers. The Gas Leak Detector has a lifespan of 2 years and is prepared for every condition that could possibly emerge in the industry. It’s worth mentioning that while the Gas Leak Detector Crowcon Clip+ also has a lifespan of 2 years, it has an additional standby mode that enables a utilization of the device for more than 3 years with discontinuity. The Gas Leak Detector Crowcon Clip can measure the parameters for hydrogen sulfide (H2S), carbon monoxide (CO) and oxygen (O2). The Gas Leak Detector guarantees optimal security due to its reliability and the fact that is does not require any maintenance. At the same time, the Gas Leak Detector is uncomplicated so that time-consuming briefings become unnecessary. Via the additional software and the IR-link, various alarm-steps can be adjusted, the measuring data can be shown in real-time, or interpreted and documented by meanings of the integrated IR- interface. The Gas Leak Detector also notifies the user if a gas – detection should become necessary (Bump-test). As previously mentioned, the Gas Leak Detector is prepared for any conditions that could emerge in the industry. Measurements can be executed at a temperature range of -40 to +50°C / -40 to 144°F or relative humidity of 5 to 95%. The Gas Leak Detector has IP 66 and 67 standard protections and, with measures of 81 mm x 50 mm x 28 mm / 3.2 x 2 x 1.1 in, they are very compact.
– Self-test function
– 24 months operation time / detection
time
– 36 months with discontinuity with Clip+
– Optic, acoustic, and haptic alarm
– Adjustable alarm levels
– Gas level- or service life-display
– For CO (Carbon Monoxide)
– Short briefing time
Technical specification of the Carbon Monoxide Meter Crowcon Clip/Clip+ | |||
Measuring ranges and alarm level of Carbon Monoxide Meter Crowcon Clip� | |||
Gas | Measuring range sensor | Alarm1 | Alarm 2 |
H2S | 0 … 100 ppm | 5ppm | 10 ppm |
CO | 0 … 300 ppm | 30ppm | 100 ppm |
O2� | 0 … 30% Vol. | 19% Vol. | 23.5% Vol. |
Common technical data for the Gas Alerter Crowcon Clip/Clip+ | |||
Operation time | 24 months nonstop operation Clip 36 months with standby mode Clip+ if max. 4 minutes alarm duration daily | ||
Storage option | Max. 1 year before first activation | ||
Display | LCD, Remaining life, gas level and further information | ||
Alarm display optic acoustic haptic | LED on top, bottom and sidewise 95 dB Vibration | ||
Self-test | Every 2 hrs. after turn-on, constant battery monitoring | ||
Power Supply | Internal battery | ||
Environmental conditions H2S CO O2 | -40 … +50°C / -40 … 122°F / 5 … 95 % r.h. non-condensing -40 … +50°C / -40 … 122°F / 5 … 95 % r.h. non-condensing -35 … +50°C / -31 … 122°F / 5 … 95 % r.h. non-condensing | ||
Dimensions | 81 x 50 x 28 mm / 3.9 x 2 x 1.1 in | ||
Weight | 76 g / < lb | ||
Protection type | IP 66/ IP 67 | ||
Compliance | EMC- guideline 89/336/EWG | ||
Certification | UL-913 & CSA-C22.2 Nr.157 Class 1 Div. 1 and 2, Group A, B, C, D ATEX II 1G Ex ia IIC T4 Ga IECEx Ex ia IIC T4 |
