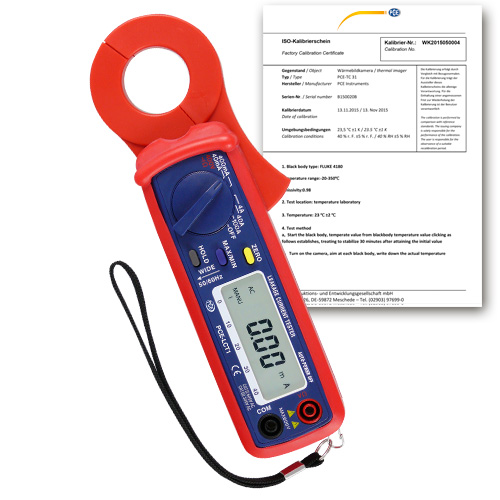

For checking the leakage current / RMS Current measurement / Continuity and resistance test / Voltage measurement up to 400V
– Current measurement up to 100 A
– Voltage measurement up to 400 V
– Continuity test
– Resistance measurement up to 400 Ω
– Digital 40-digit bargraph
– High resolution
– Maximum / minimum value retention in display
– Robust rubber protection
– Test leads included in delivery
– Incl. ISO Calibration Certificate
Leakage current and current (AC A) | |||
Measurement ranges | Resolution | Accuracy | |
50 / 60 Hz | 400 Hz … 1 kHz | ||
40-mA | 10 µA | ± (1% + 0.5-mA) | ± (4.5% + 0.5-mA) |
400-mA | 100 µA | ± (3% + 5-mA) | ± (3% + 5-mA) |
4 A | 1-mA | ± (4% + 0.1-mA) | ± (4% + 0.1 A) |
40 A | 10-mA | ± (4% + 1 A) | ± (4% + 1 A) |
80 A | 10-mA | ± (2.5% + 1 A) | ± (3% + 1 A) |
80 A – 100 A | 100-mA | ± (5% + 1 A) | ± (5% + 1 A) |
Voltage (AC V) | |||
Measurement ranges | Resolution | Accuracy | |
50 / 60 Hz | 400 Hz … 1 kHz | ||
400V | 1V | ± (1.5 % + 2 digits) | ± (2 % + 4 digits) |
Resistance | |||
Measurement ranges | Resolution | ||
Accuracy | Alarm | ||
400 Ω | 0.1 Ω | ± (1% + 2 digits) | Measurement value <38Ω |
General Technical Specifications | |||
Display | 3 3/4 | ||
Measured electrical properties | AC V, AC A, resistance | ||
Security standards | CAT III 300V / CAT II 600V | ||
Diameter of the clip | 30 mm | ||
Input impedance | 10 MΩ | ||
Registration rate | 2 Hz (numerical values), 20 Hz (bar graph) | ||
Operating temperature | -10 … 50ºC / 14 … 122ºF | ||
Operating humidity | <85% H.r. | ||
Storing temperature | -20 … 60ºC / -4 … 140ºF | ||
Auto shut-off | After 30 minutes | ||
Power | 9 V battery | ||
Input current | 10-mA | ||
Weight | 200 g / < 1 lb | ||
Dimensions | 210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in |
