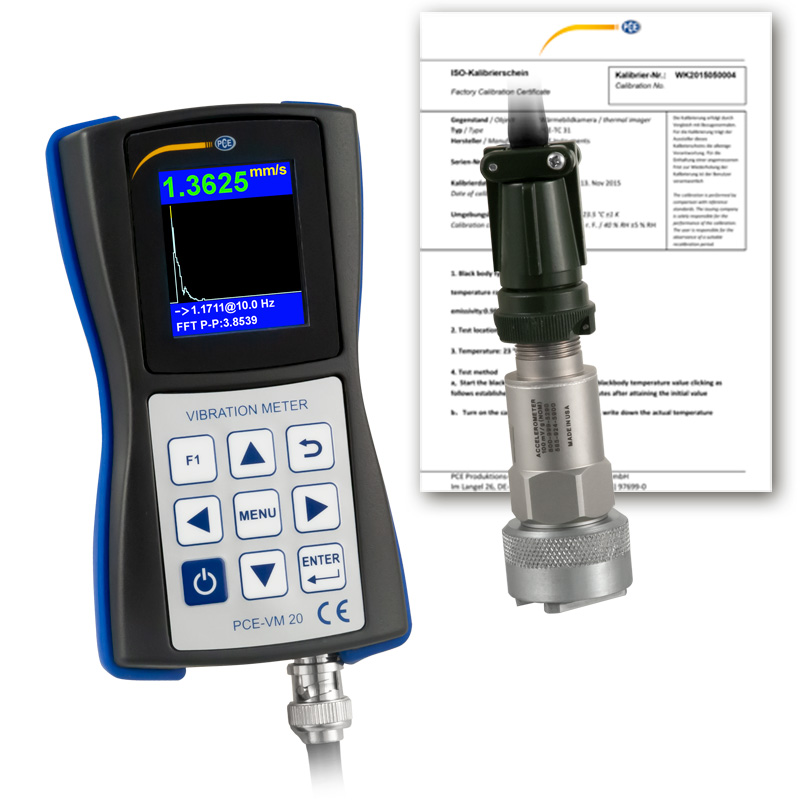

Vibration�meter�PCE-VM 20-ICA incl. ISO Calibration Certificate
Vibration measuring device for vibration measurement on machines / Direct evaluation according to DIN ISO 10816 / Various measurement modes / Real-time FFT analysis / Route option for fast acquisition of measuring points

The vibration meter PCE-VM 20 is a compact device for the direct evaluation of the vibration behavior of a machine. The device can measure and display various vibration parameters, such as vibration acceleration, vibration velocity or vibration displacement. Thanks to the integrated real-time FFT analysis, the condition of a machine can be analyzed and determined during the measurement.

The PCE-VM 20 vibration meter can evaluate and display signals from IEPE standard piezoelectric vibration sensors as well as piezoelectric vibration sensors with charge output.

– Real-time FFT analysis
– Robust housing
– Many vibration parameters
– Direct evaluation according to DIN ISO 10816
– Integrated LiPo battery
– incl. ISO Calibration Certificate

Vibration acceleration	0 … 200 m/s², RMS and Peak-Peak
Vibration velocity	0 … 200 mm/s, RMS
Vibration displacement	0 … 2000 μm, Peak-Peak


Accuracy vibration	± 5%


Operating modes	Vibration, temperature, speed
Representable measured variables	Frequency
	Vibration acceleration
	Vibration velocity
	Vibration
	FFT spectrum


Units	Metric
	Hz, mm/s², mm/s, μm, RPM, Hz


Interface	USB 2.0
Storage	4GB micro SD card
Battery life	Up to 8 h continuous operation
Battery type	Lithium polymer
Display	128 x 160 pixel color LCD
Environmental conditions	-10 … 55°C / 14 … 131°F
	≤ 80% RH not condensing
Dimensions	132 x 70 x 33 mm / 5.2 x 2.8 x 1.3 in (L x W x D)
Weight	About 150 g / < 1 lb

Handset: must not be exposed to strong vibrations, magnetic fields, corrosive media or dust

Technical data for the vibration sensor
Sensitivity	100 mV / g
Frequency response (± 3 dB)	0.5 … 15,000 Hz
Frequency response (± 10%)	2.0 … 10,000 Hz
Dynamic range	± 50 g, peak
Power supply (IEPE)	18 … 30V DC
Constant current source	2 … 10-mA
Spectral noise at 10 Hz	14 μg / √Hz
Spectral noise at 100 Hz	2.3 μg / √Hz
Spectral noise at 1000 Hz	2 μg / √Hz
Output impedance	< 100 Ω
Bias voltage	10 … 14V DC
Housing insulation	> 100 MΩ
Environmental conditions	-50 … 121 °C / -58 … 249.8 °F
Maximum impact protection	5000 g, peak
Resonant frequency	23,000 Hz
Housing material	316L stainless steel
Connection	2 Pin MIL-C-5015
Protection	IP68
Weight	90 g / < 1 lb
