IRS – Infrared Sensor with 8 ft. cable

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Details

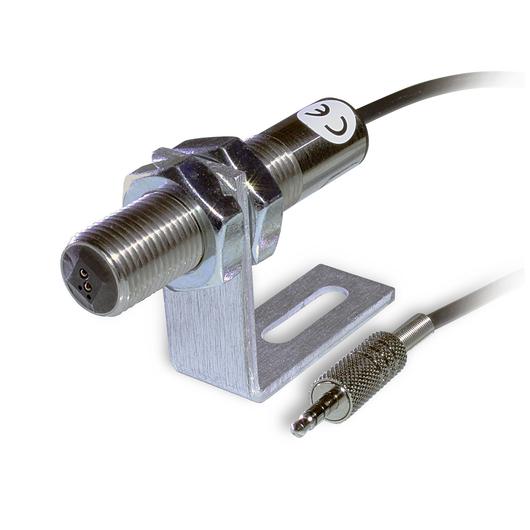

The Infrared Optical Sensor has an invisible infrared light source that is ideal for working up to 0.5 in. [12 mm] from high-speed equipment or other applications providing only contrasting light and dark surfaces or beam interruption by solid objects as small as 0.039 in. [1 mm]. The sensor is housed in a threaded 303 stainless steel tube and supplied with a 90-degree angle aluminum-mounting bracket and two M16 jam nuts. The IRS is supplied with an 8 ft. [2.4 m] cable terminated with a 1/8 inch [3.5 mm] male stereo plug (IRS-P) or 4 tinned wires (IRS-W). An optional 25 ft. [7.6 mm] extension cable EC-25P is available with a female socket for the plug on one end, and a 1/8 inch [3.5 mm] male stereo plug on the other.

Specifications*

MODEL	IRS-P IRS-W
Speed Range	1 – 1,000,000 RPM
Illumination	Infrared LED (not visible)
On-Target Indicator	Red/green LED on the wire end cap
Target	Contrasting colors or beam interrupt
Operating Range	Up to 0.5 in. [12 mm] from target
Power Requirement	3.3 – 15VDC @ 40mA
Output Signal	Negative pulse input voltage (+V) to 0
Operating Temperature	-40° to 185°F [-40° to 85°C]
Humidity	Maximum relative humidity 80% for temperature up to 88°F [31°C]; decreasing linearity to 50% relative humidity at 104°F [40°C], humidity must be non-condensing
Connection	1/8 in. [3.5 mm] male stereo plug (IRS-P) Tinned wires (IRS-W)
Standard Cable	8 ft. [2.4 m]
Material	303 stainless steel tube supplied with mounting bracket and two M16 jam nuts
Dimensions	Threaded tube: 2.90 in. x 0.62 in. diameter [M16 x 1.5 x 74 mm] long
