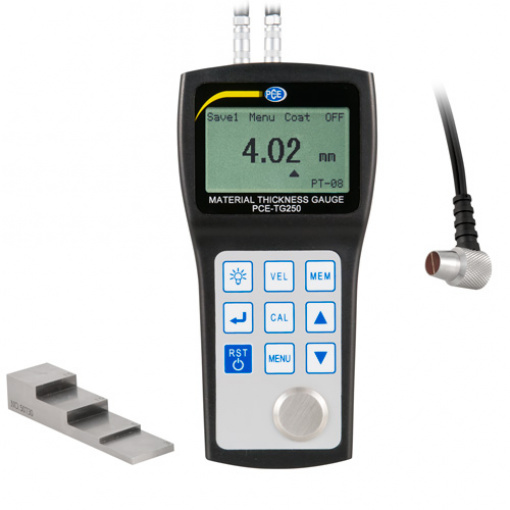

PCE-TG 250 Material Thickness Meter
PCE-TG 250 is a portable Material Thickness Meter with an easy-to-read 4-digit display. This ultrasound-based Material Thickness Meter uses a contact transducer (included) to measure the thickness of coated and uncoated ferrous and non-ferrous metal, glass, plastic, and other homogeneous materials including aluminum, brass, copper, iron, lead, nickel, steel, gold, titanium, pyrex and quartz glass, nylon, polyethylene, and silicone rubber. See accessories for replacement contact gel and ISO calibration options.
– Measurement range: 1 mm … 250 mm / 0.04 in … 9.84 in (uncoated steel)
– 2.5 mm … 20 mm / 0.1 in … 0.79 in (coated surfaces)
– Accuracy: ±0.5% of measured value + 0.02 mm / 0.0008 in
– Resolution: 0.01 mm / 0.1 mm (0.0004 in / 0.004 in)
– Sound velocity: 1000 m/s … 9999 m/s / 3280 ft/s … 32805 ft/s
– Adjustable velocity speed in increments of 1 m/s
– Requires use of contact gel or paste
– Features a built-on 4 mm (0.2 in) steel calibration standard and user-friendly DIY calibration procedure
Measurement range | 1 mm … 250 mm / 0.04 in … 9.84 in (uncoated steel) 2.5 mm … 20 mm / 0.1 in … 0.79 in (coated surfaces) |
Accuracy | ±0.5% of measured value + 0.02 mm / 0.0008 in |
Contact transducer (included) | 5 MHz frequency, 10 mm / 0.39 in diameter |
Resolution | 0.01 mm / 0.0004 in (Less than 100 mm / 3.9 inch); 0.1 mm / 0.004 in (over 100 mm / 3.9 inch) |
Display | 4 digit, 128 x 64 pixel, backlit LCD |
Operating conditions | 0°C … 50°C / 32°F … 104°F 20% … 90% RH |
Sound velocity | 1000 m/s … 9999 m/s / 3280 ft/s … 32805 ft/s |
Adjustable velocity speed | 1 m/s / 3.3 ft/s increments |
Memory | Stores up to 500 readings |
Power | AAA batteries |
Dimensions | 149 mm x 73 mm x 32 mm 5.87 in x 2.88 in x 1.26 in |
Weight | 350 g / < 1 lb |
