Class 1 Decibel Meter Calibrator PCE-SC 10

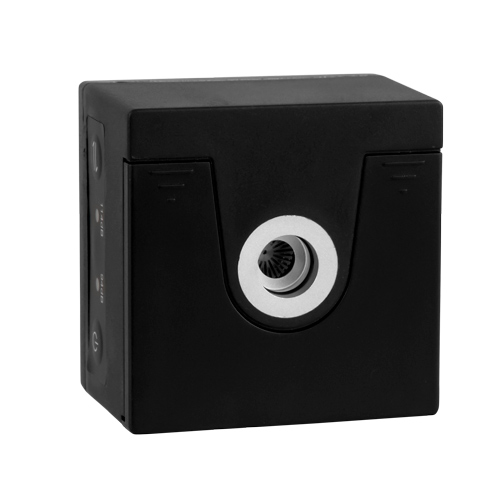

PCE-SC 10 Class 1 Decibel Meter Calibrator
Accurate type 1, class I decibel (dB), noise or sound pressure level (SPL) meter, microphone or audio calibration device

PCE-SC 10 is a class 1 acoustic or sound calibrator used to calibrate microphones, sound pressure level (SPL) meters and other noise measuring devices. Suitable for use with type 1 or class I noise measuring instruments, this portable decibel (db) meter calibrator is easy to use in the field or the laboratory.

– Designed to calibrate sound level meters, microphones and other noise measuring devices
– Suitable for use with type 1 or class I noise measuring instruments
– Easy to use in the field or the laboratory
– Standards are IEC60942:2003 Class 1, ANSI S1.40-1984, GB/T 15173-1994



Frequency: 1 kHz / ± 0.5 %
Sound pressure levels: 94 dB and 114 dB
Accuracy: ± 0.3 dB
Sound distortion: < 2%
Stabilization time: < 10 sec.
Standard: IEC60942:2003 Class 1, ANSI S1.40-1984, GB/T 15173-1994
Microphone opening: 1/2″ and 1/4″ per IEC 61094-4
Operating conditions: -10 ° … +50 ° C (+10 ° F … +122 ° F), 10% … 90% RH
Power supply: 2 x 1.5 V AA batteries (LR6)
Dimensions: Approx. 75 x 70 x 46 mm (2.96 x 2.76 x 1.82″)
Weight: Approx. 316 g (0.7 lb)
