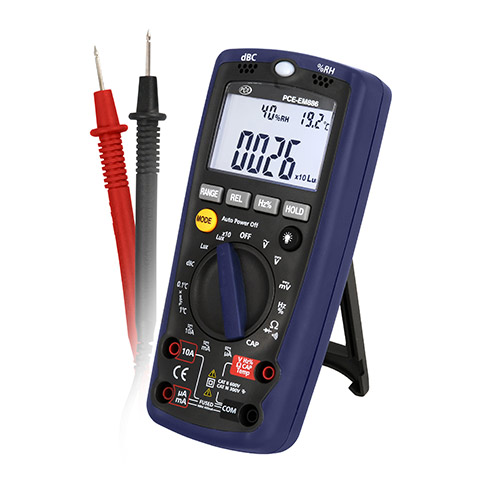

– Large, easy-to-read LCD display with backlight
– Hold, Hz%, range and relative measurement functions
– Low battery indication icon
– Compact, portable design
– Auto-ranging electrical multimeter
– Delivery contents include an external temperature sensor with type K thermocouple and a set of electrical test leads
– Optional external infrared temperature sensor available for purchase separately (see accessories for additional details)
Sound | |
Measurement range | 35 … 100 dB |
Resolution | 0.1 dB |
Frequency range | 30 Hz … 10 kHz |
Frequency weighting | C |
Time weighting | Fast |
Accuracy | ± 5 dB at 94 dB, 1 kHz sine wave |
Microphone | Internal, electric condenser |
Light | |
Measurement range | 4,000 … 40,000 lux (40,000 lux range reading x 10) |
Overrate display | Highest digit of “OL” |
Accuracy | ± 5% measurement value + 10 digits (calibrated to standard incandescent lamp at color temperature 2856k) |
Repeatability | ± 2% |
Temperature characteristic | ± 0.1% / °C (°F) |
Sensor | Internal, silicon photodiode with filter |
Humidity | |
Measurement range | 33 … 99% relative humidity (RH) |
Resolution | 1% RH |
Accuracy | ± 3% measurement value + 5% RH |
Temperature | |
Measurement range | Indoor: 0 … 50°C Type K: -20 … 1300°C |
Resolution | Indoor and Type K to 400°C : 0.1°C Type K to 1300°C : 1°C |
Accuracy | ± 3% measurement value ± 3°C |
Electrical | |
AC / DC current (auto-ranging for uA and mA) Measurement range Accuracy |
400-uA / 4000-uA / 40-mA / 400-mA / 10 A ± 1% measurement value ± 2 digits (up to 40-mA DC) ± 1.2% value ± 2 digits (up to 400-mA DC / 40-mA AC) ± 1.5% value ± 2 digits (up to 400-mA AC) ± 2% value ± 5 digits (up to 10 A) |
Resistance (auto-ranging) Measurement range Resolution Accuracy | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
Capacitance (auto-ranging) Measurement range Resolution Accuracy | 50 nF / 500 nF / 5 uF / 50 uF / 100 uF 10 pF / 0.1 nF / 1 nF / 10 nF / 0.1 uF ± 5% value ± 20 digits (up to 50 nF) ± 3% value ± 5 digits (up to 50 uF) ± 4% value ± 5 digits (up to 100 uF) |
Frequency (auto-ranging) Measurement range Resolution Accuracy | 5 Hz / 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 10 MHz 0.001 Hz / 0.01 Hz / 0.1 Hz / 1 Hz / 10 Hz / 100 Hz / 1 kHz ± 1.2% value ± 3 digits (up to 500 kHz) ± 1.5% value ± 4 digits (up to 10 MHz) |
General specifications | |
Display | LCD |
Overrange indicator | “OL” |
Measurement rate | 3 times per second, nominal |
Operating conditions | 0 … 40°C / < 70% RH |
Storage conditions | -10 … 60°C / < 80% RH |
Power supply | 1 x 9V battery |
Meter dimensions | 170 x 78 x 48 mm |
Weight | 335 g |
