Conductivity Meter PCE-PHD 1-LF

Name: Conductivity Meter PCE-PHD 1-LF
SKU: 11087
Availability: BackOrder

PCE-PHD 1-LF

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: เครื่องวัด Conductivity - TDS - Salinity

รายละเอียดเพิ่มเติม

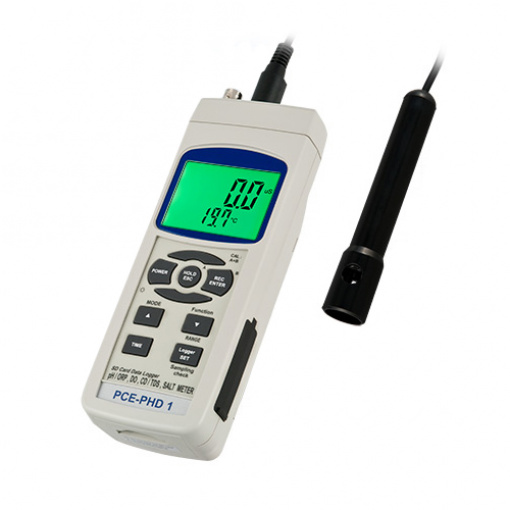

PCE-PHD 1-LF Conductivity Meter�

SD card memory (1 … 16 GB), stored data is stored as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC / Includes a conductivity electrode

PCE-PHD 1-LF Multifunction Conductivity Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.

Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-LF is supplied with a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-LF acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.

– Real-time data logger
– Compatibility with SD cards up to 16 GB
– The stored data is saved directly as an Excel file on the SD card (no software needed for evaluation)
– RS-232 interface for online data transmission
– High precision
– Low battery indication
– Large LC display
– Adjustable measuring rate
– Easy to use
– Robust housing
– Automatic calibration
– Manual or automatic temperature compensation
– BNC connector
– Suitable for laboratory and on-site measurement
– Electrode for conductivity included

Conductivity
Measurement range	0 … 200 µS/cm, 0.2 … 2.0 mS/cm, 2 … 20.0 mS/cm, 20 … 200 mS/cm
Resolution	0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy	±2 % of the measurement range + 1 digit
Calibration	1413 mS/cm
Temperature compensation	Automatic (0 … 60 ºC / 32 ºF … 140 ºF)

General specifications
Measurement rate	1 second up to 8 hrs 59 mins 59 secs
Display	LCD 52 x 38 mm / 2 x 1.5″
Memory	SD card up to 16 GB (2 GB card included)
Interface	RS-232
Software	Optional
Power supply	6 x 1.5 V AA batteries (optional power adapter)
Operating conditions	0 … +50 ºC / < 85 % RH
Dimensions	177 x 68 x 45 mm / 7.0 x 2.7 x 1.8″
Weight	490 g / 1.1 lbs
