Timber Moisture Meter FMD 6

FMD 6 Timber Moisture Meter
For paper, wood and building materials / Memory stores up to 1,000 measurement values for transfer to PC using included software

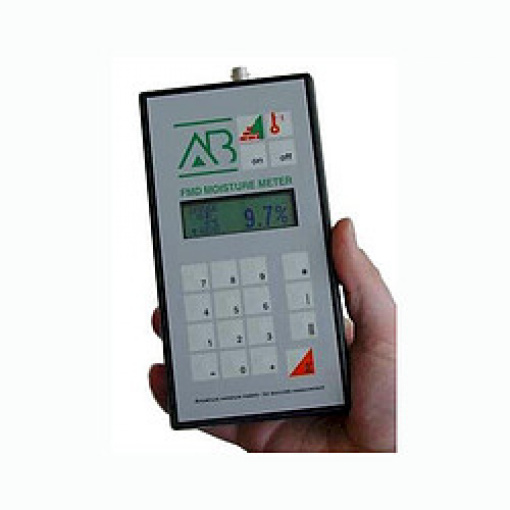

FMD 6 is a handheld timber moisture meter for accurate measurement of the moisture content of paper, wood and building materials. The moisture meter features preset characteristic curves for material-specific moisture measurement. To detect moisture, the moisture meter requires external sensors (sold separately – see accessories) that can either be inserted into a material or placed on a material’s surface, allowing for either destructive or non-destructive measurement.

It is important to choose an external sensor to best suit the material to be measured. There are different sensor models for different materials and applications. Please see the accessories tab for more information about external sensors for the FMD 6 moisture meter.

The FMD 6 moisture meter is the ideal tool for monitoring the moisture content of paper, wood and building materials such as concrete, pavement, cement, gypsum and mortar. This portable handheld moisture meter can be used on the manufacturing production floor as well as on the construction job site to measure moisture in lumber, walls, floors and more. The meter’s internal memory stores up to 1,000 measurement values for transfer to a PC using the included software.

A total of 500 preset characteristic curves are stored in the meter’s internal memory. Below are some of the most popular material presets.

Building materials:
– Concrete (200 kg/m³)
– Concrete (350 kg/m³)
– Concrete (500 kg/m³)
– Bricks
– Lime mortar
– MDF
– Floor (anhydrite)
– Floor of cement (Arduparid)
– Floor of cement mortar (1 : 3)
– Floor (Elastizell)
– Floor gypsum
– Lime-stone
– Asbestos – cement
– Asphalt fiber
– Gypsum
– Gypsum (synthetic)
– Papier-mâché

Paper:
– Assi
– Bilerud
– Paper (in general)
– Kraft paper (150 g/m²)
– Kraft paper (440 g/m²)
– SC paper (150 g/m²)
– PWA

Wood:
– Abachi
– Abarco
– Birch (European)
– Abura
– Afrormosia
– Poplar
– Alone
– Amburana
– Avodire
– Baboen
– Balsa
– Bilinga
– Bodo
– Bomanga
– Bonkonko
– Bosse
– Mahogany
– Chestnut (noble)
– Cherry-tree (European, American)
– Cedar
– Poplar
– Keruing (light, heavy)
– Dabema
– Danta
– Dibetou
– Durian
– Essessang
– Framire
– Freijo
– Ash (European)
– Fuma
– Beech (European, vaporized, non-vaporized)
– Igaganga
– Ilomba
– Iroko
– Jelutong
– Kapur
– Kosipo
– Krappa
– Kwarie
– Lauan (red)
– Limba
– Makore
– Mansonia
– Matakki
– Matoa
– Mengkulang
– Meranti (dark red, light red)
– Movingui
– Muninga
– Niangon
– Walnut (European, American)
– Satin walnut
– Oega
– Elm
– Okoume
– Padouk (African)
– Pear tree
– Peroba
– Peroba (pink)
– Banana tree
– Possentrie
– Ramin
– Oak
– Tasmanian Oak
– Willow
– Sapupira
– Sen
– Sepetir
– Seraya (red, white)
– Soemaroepa
– Tabaca
– Tchitola
– Teca
– Lime tree
– White Tola
– Wane
– Yang
– Fir
– Canadian Fir (east, west)
– Agathis (heavy, light)
– Alcere
– Alerce (European, Japanese, Russian)
– Alerce (American, East, West)
– Red Cedar
– Douglas Fir (heavy, light)
– Pine (European, Nordic)
– Pine (light, heavy, Caribbean, American)
– Pine (European, Nordic, Kern, Spint)
– Pine (French)
– Pine Parana
– Pine Radiata
– Pine Sitka
– Pine Sugar
– Pine Weymouth
– Yellowwood
– Redwood (Californian, heavy, light)
– Sugi

– Easy to use
– High accuracy
– Battery-saving automatic shutdown (can be disabled)
– Characteristic curves for material-specific measurement
– Memory stores up to 1,000 measurement values for transfer to PC using included software
– External sensors sold separately – see accessories for details
